GFC20*25 Rubber Jaw Flexible Shaft Coupling for industry

GFC20*25 Rubber Jaw Flexible Shaft Coupling for industry

Marchio:	Tianniu
Numero di modello:	GFC
MOQ:	1 PZ
prezzo:	negotiable
Tempi di consegna:	3-5 giorni lavorativi
Termini di pagamento:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

ISO 9001

Modello:

ACCOPPIAMENTO A GANASCE GFC

Garanzia:

12 mesi

Dimensione del foro:

3-55 mm

Lunghezza:

14-95 mm

Touque:

5-250

Imballaggi particolari:

Cartoni da trasporto del mare in aeroplano

Capacità di alimentazione:

10000 al mese

Evidenziare:

Rubber Jaw Shaft Coupling for industry

Flexible Shaft Coupling GFC20*25

Plum Shaft Coupling with rubber jaw

Descrizione del prodotto

GFC Shaft Coupling Flexible Coupling

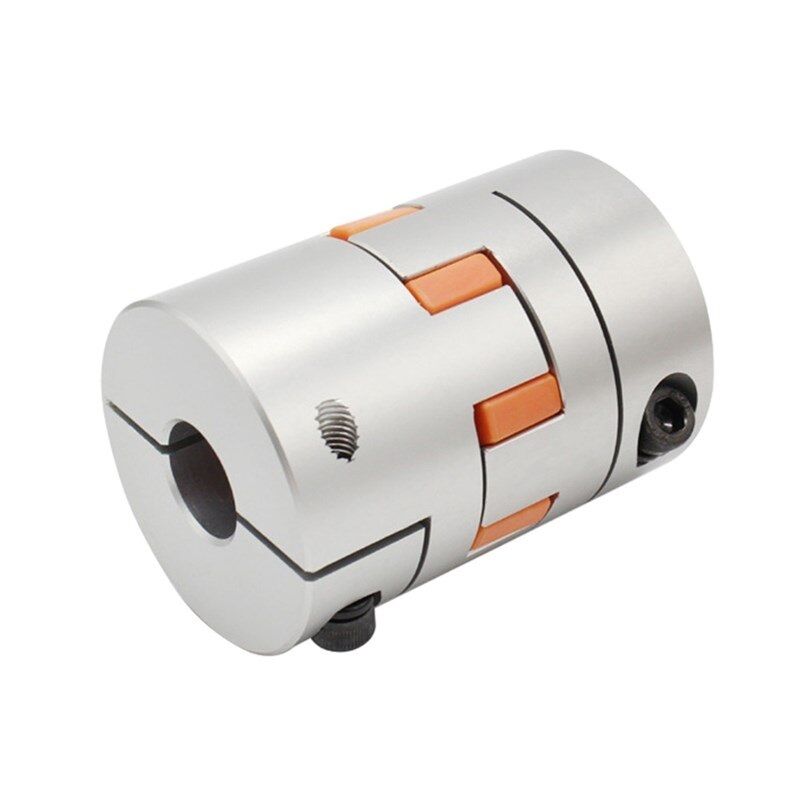

GFC20*25 Rubber Jaw Flexible Shaft Coupling for industry 0

Products Features

>High torque rigidity, can accurately control the rotation of the shaft, can carry out high-precision control
>Designed for servo and stepping motor
>No gap between the shaft and sleeve connection, general for positive and negative rotation
>Low inertia, suitable for high speed operation
>The diaphragm is made of spring steel with excellent fatigue resistance

Products Parameters

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GFC-14X22	3,4,5,6,6.35	14	22	14.3	6.6	5.0	M2.5	1.0
GFC-20x25	3,4,5,6,6.35,7,8,9,9.525,10	20	25	16.7	8.6	5.9	M3	1.5
GFC-20X30	3,4,5,6,6.35,7,8,9,9.525,10	20	30	19.25	8.6	5.9	M3	1.5
GFC-25X30	4,5,6,6.35,7,8,9,9.525,10,11,12	25	30	20.82	11.6	8.5	M4	2.5
GFC-25X34	4,5,6,6.35,7,8,9,9.525,10,11,12	25	34	22.82	11.6	8.5	M4	2.5
GFC-30x35	5,6,6.35,7,8,9,10,11,12,12.7,14,15,16	30	35	23	11.5	10	M4	2.5
GFC-30X40	5,6,6.35,7,8,9,10,11,12,12.7,14,15,16	30	40	25	11.5	10	M4	2.5
GFC-40X50	6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24	40	50	32.1	14.5	14	M5	7
GFC-40X55	6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24	40	55	34.5	14.5	14	M5	7
GFC-40X66	6,8,910,11,12,12.7,14,15,16,17,18,19,20,22,24	40	66	40	14.5	14	M5	7
GFC-55X49	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	49	32	16.1	13.5	M6	12
GFC-55X78	8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	78	46.4	16.1	19	M6	12
GFC-65X80	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40	65	80	48.5	17.3	14	M8	20
GFC-65X90	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40	65	90	53.5	17.3	22.5	M8	20
GFC-80X114	19,20,22,24,25,28,30,32,35,38,40,42,45	80	114	68	22.5	16	M8	20
GFC-95X126	19,20,22,24,25,28,30,32,35,38,40,42,45,50,55	95	126	74.5	24	18	M10	30

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	weight (g)
GFC-14X22	5.0	0.1	1	±02	10000	50	1.0x10-6	10
GFC-20X25	5.0	0.1	1	±02	10000	50	1.0x10-6	15
GFC-20X30	5.0	0.1	1	^02	10000	53	1.1x10-6	19
GFC-25X30	10	0.1	1		10000	90	5.2X10-6	33
GFC-25X34	10	0.1	1	£)2	10000	90	5.2x10-6	42
GFC-30X35	12.5	0.1	1	±02	10000	123	6.2x10-6	50
GFC-30x40	12.5	0.1	1	102	10000	123	6.2x10-6	60
GFC-40X50	17	0.1	1		8000	1100	3.8x10-5	115
GFC-40X55	17	0.1	1	±02	8000	1100	3.8x10-5	127
GFC-40X66	17	0.1	1		7000	1140	3.9x10-5	154
GFC-55X49	45	0.1	1	±02	6500	2350	1.6x10-3	241
GFC-55X78	45	0.1	1	102	6000	2500	1.6x10-3	341
GFC-65X80	108	0.1	1	±02	5500	4500	3.8x10-3	433
GFC-65X90	108	0.1	1	±02	5500	4800	3.8x10-3	583
GFC-80X114	145	0.1	1	£)2	4500	5000	1.8x10-3	1650
GFC-95X126	250	0.1	1	±02	4000	5000	2.0x10-3	1000
